FC-02 PA+TOFD Scanner

介绍 Features 性能指标

FC-02 PA+TOFD Scanner

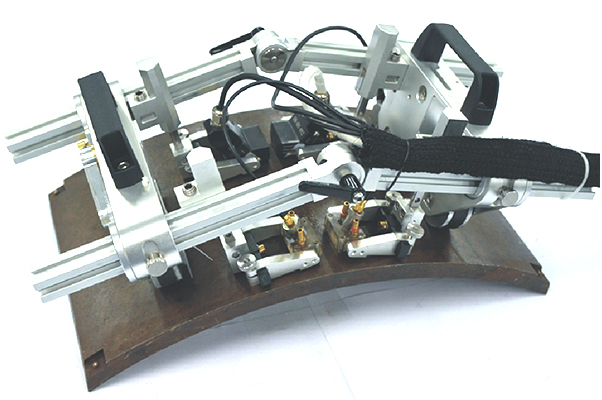

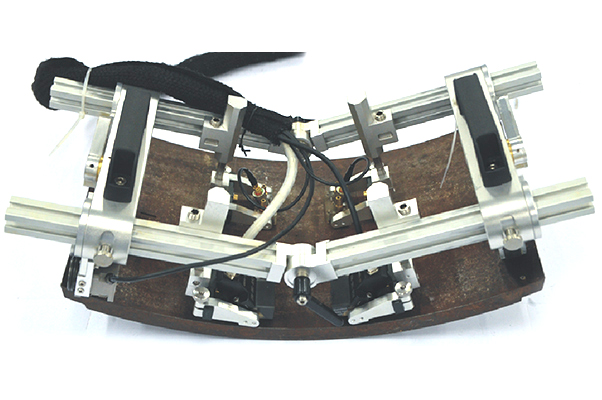

PA/TOFD (FC02) Scanner support curvature adjustment, applicable to detection for pipe and plate in direction of circumferential and axial. Pressure regulator ensures wedge closely attach to work piece for an effective detection. By equipped with reliable brake device, the scanner can firmly stay at any position. By simple operation, most of scanning functions can be achieved manually. Scanner can be assembled with 4 probes according to detection requirement (PA / UT), convenient assembly and disassembly.

Features

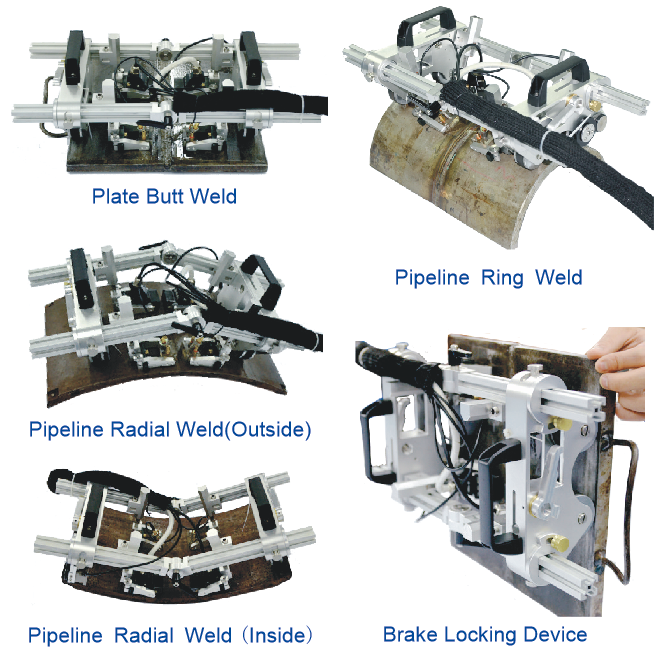

1. Assembly of 4 probes, probe clamping arms can be disassembled unilateral manually;

2. Two horizontal bars can be folded to adjust curvature, manual adjustment can realize detection from 7 inch pipe to plate in direction of axial ;

3. Two horizontal bars can be rotated, manually adjust a pair of probe clamping arms can realize detection from 6 inch pipe to plate in direction of circumference;

4. Both sides have a brake device, scanner can stay at any position;

5. Inner water distribution device , save more space ;

6. Space of walking wheel adjustable, freely work on short work piece;

7. Clamp wedge for different size, strong adaptability；

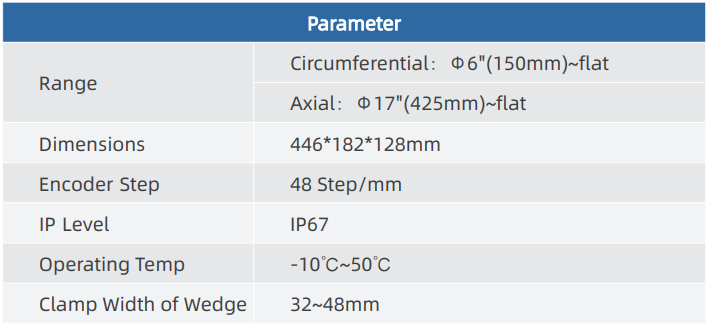

性能指标

Standard Kits

· Two brackets (including angle adjusting block, handle and brake device);

· Two foldable horizontal bars with total length of 446mm;

· One encoder with 2.8m cable;

· Four probe clamping arms;

· One water distribution device;

· Carrying case and other accessories.
