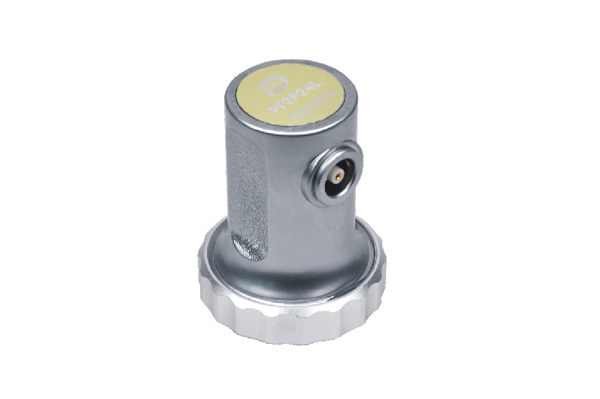

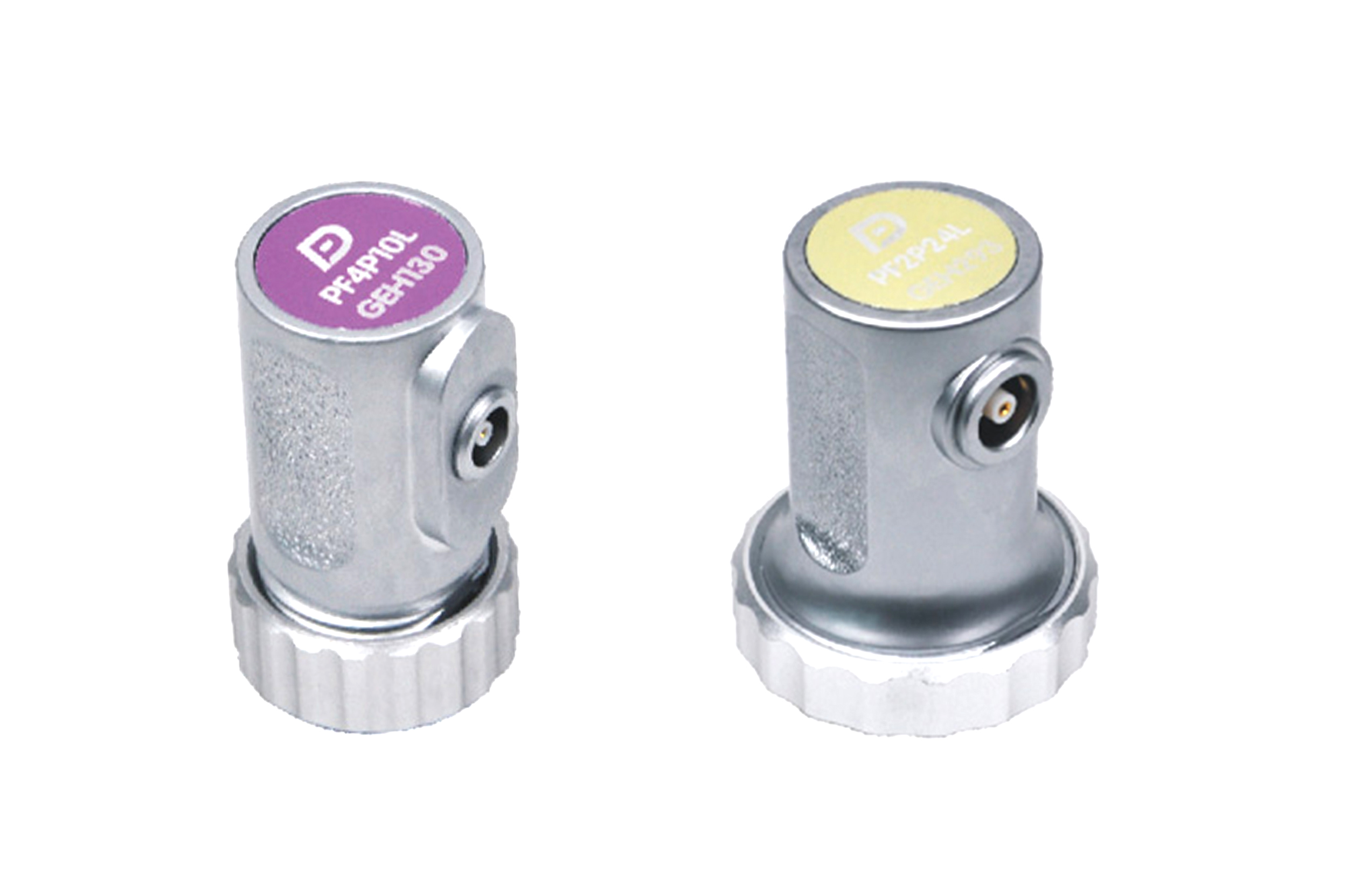

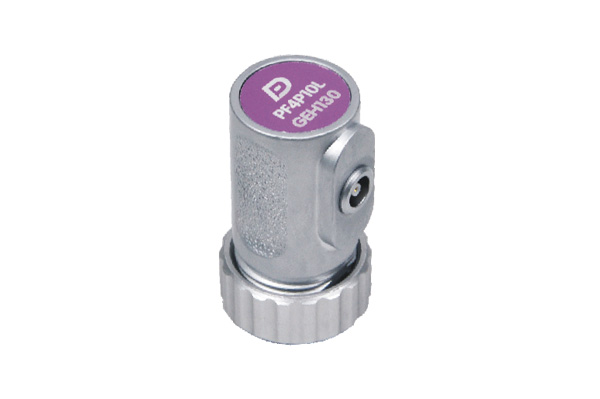

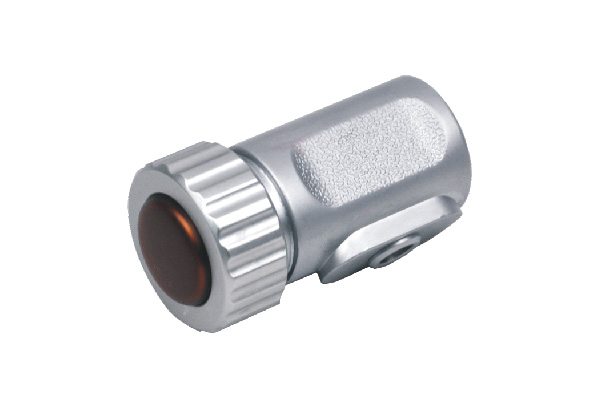

Soft Protective Membrane Probe
Soft Protective Membrane Probe
Soft Protective Membrane Probe
Soft Protective Membrane Probe
Soft Protective Membrane Probe
Soft Protective Membrane Probe
Soft Protective Membrane Probe
Soft Protective Membrane Probe

Replaceable protective films,Sound Wave Vertical Incidence and direct contact with workpiece.


Features&Applications

Features

· Provide soft film or wear-resistant cover for different applications

· The soft film can reduce the effect of coupling on uneven or rough surfaces

· The wear-resistant cover is suitable for rapid scanning on rough surfaces

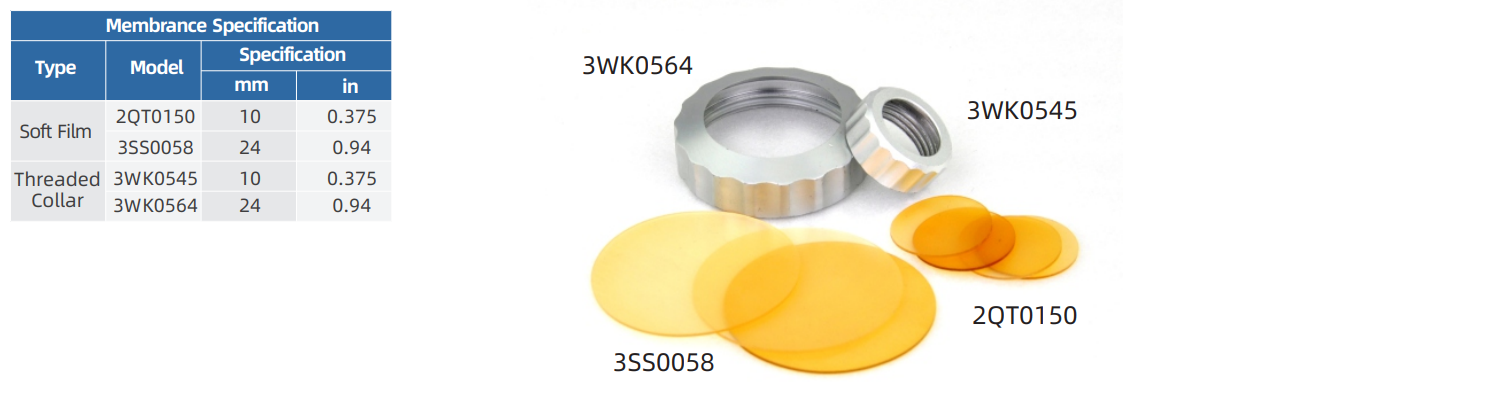

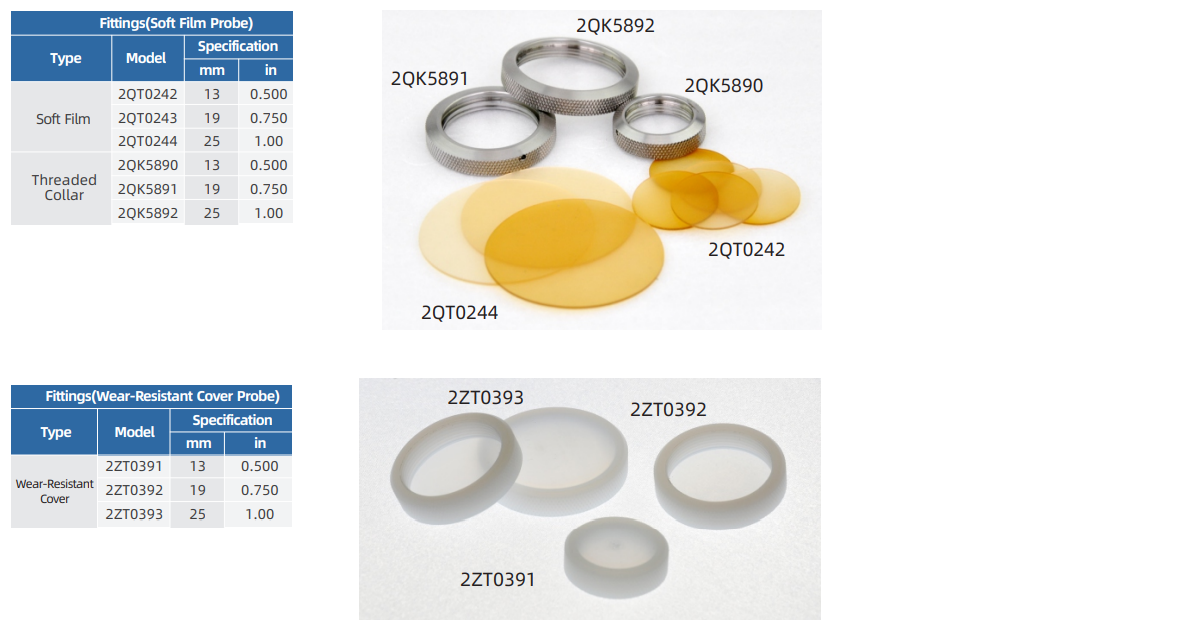

· The front soft film and wear-resistant cover can be replaced to prolong the service life of the probe

· For European standard only provides the soft film option, for the North America standard we can provide both the soft film and wear-resistant cover


Applications

· Simple structure of metals

· Large plates, bars, forgings, metals and non-metals

· Small tanks, pipes, castings, bars

· Sandwich and laminated structures


Specification and Model

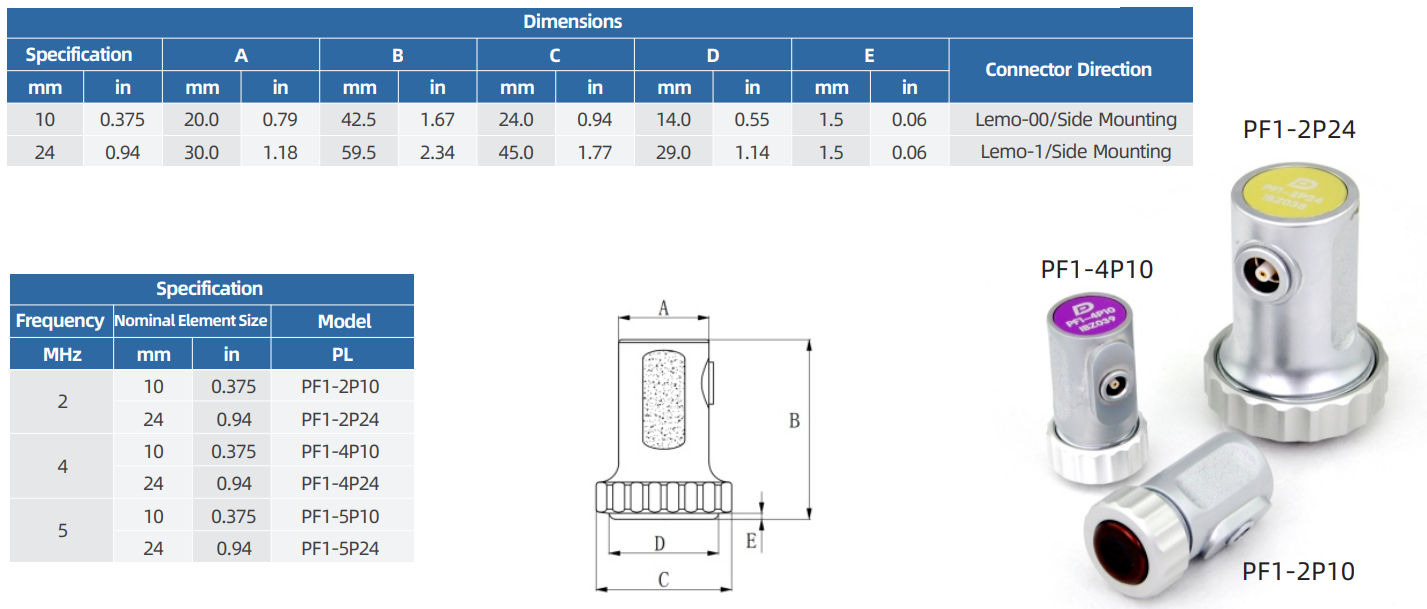

European Standard PF1

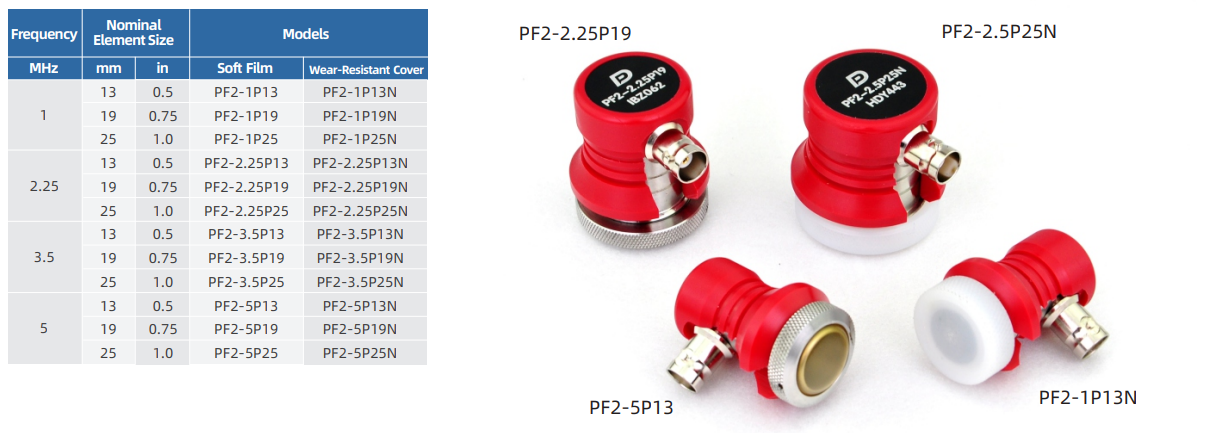

North America Standard PF2

•The probe interface is side mounted BNC by default, and the top mounted BNC can be customized.
